Getting started with Spire.XLS for .NET

E-iceblue Ltd. is a vendor of powerful components for .NET, Silverlight and WPF development. These products enable the user to easily read and write different formats of office files.

A quick an easy guide to setting up Spire.XLS for use in Visual Studio .NET projects is presented here.

For the purpose of clarity and helping the user get started as soon as possible, a simple ‘HelloWorld’ example is presented.

Step 1: Download and install Spire.XLS

Download from this link:

http://www.e-iceblue.com/Download/download-excel-for-net-now.html

… and run the installer.

Step 2: Create a .NET WinForms project

In Visual Studio, click File, New, and then Project.

If you want to create a C# project, select Visual C#, Windows and choose Windows Forms Application:

Spire.XLS1

Step 3: Set the .NET Target Framework

In Solution Explorer, right-click the project HelloWorld and click Add Reference.

In the Browse tab, find the folder in which you installed the Spire.XLS.

The default is “C:\Program Files\e-iceblue\Spire.XLS”.

Double-click the folder Bin.

If the target framework of the project HelloWorld is:

.NET 2.0, double-click folder NET2.0
.NET 3.5, double-click folder NET3.5
.NET 4.0, double-click folder NET4.0

select assembly Spire.XLS.dll and click OK to add it to the project.:

Spire.XLS2

Not sure how determine the target .NET framework of the project? First build your HelloWorld .NET project in order to generate the exe. Then open up a Visual Studio Command Prompt. In the command prompt navigate to where the exe is located and run the command:

ildasm HelloWorld.exe

Spire.XLS3

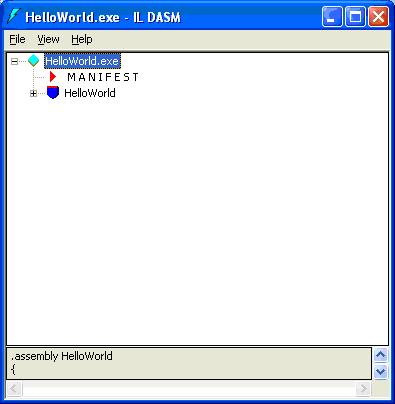

This will invoke ildasm:

Spire.XLS4

Double click on MANIFEST.

Look for the comment beginning with “// Metadata version“, which on my set up tells me that it is .NET version 4.0:

Spire.XLS5

Once you are sure which version of .NET is right for your project, right-click the HelloWorld project properties and make sure the ‘Target framework’ is set to ‘.NET Framework 4’ and not.NET Framework 4 Client Profile’, otherwise build errors may occur:

Spire.XLS6

Step 4: Write the event handling code

In Solution Explorer, double-click the file Form1.cs ( or Form1.vb for Visual Basic) to open the form design view:

Spire.XLS7

Add a button into the form. Change its name to ‘btnRun‘, change its text to ‘Run‘:

Spire.XLS8

Double-click the button ‘Run‘, you will see the code view and the following method has been added automatically:

private void btnRun_Click(object sender, EventArgs e)
{

}

Add the following code to the top of the file

using Spire.Xls;

Add the following code to the method btnRun_Click

private void btnRun_Click(object sender, EventArgs e)
{
    //Creates workbook
    Workbook workbook = new Workbook();

    //Gets first worksheet
    Worksheet sheet = workbook.Worksheets[0];

    //Writes hello world to A1
    sheet.Range["A1"].Text = "Hello,World!";

    //Save workbook to disk
    workbook.SaveToFile("Sample.xls");

    try
    {
        System.Diagnostics.Process.Start(workbook.FileName);
    }
    catch { }
}

Step 5: Startup the project

In Solution Explorer, right-click the project HelloWorld and click Debug, then Start new instance, you will see the opened window Form1, click the button ‘Run’.

An Excel document will be created, edited and opened.

The string “Hello, World” is filled in the cell A1:

Spire.XLS9
