Using the CefSharp Chromium Web Browser in WPF / XAML

Some brief instructions on getting started with using the Chromium Web Browser in WPF.

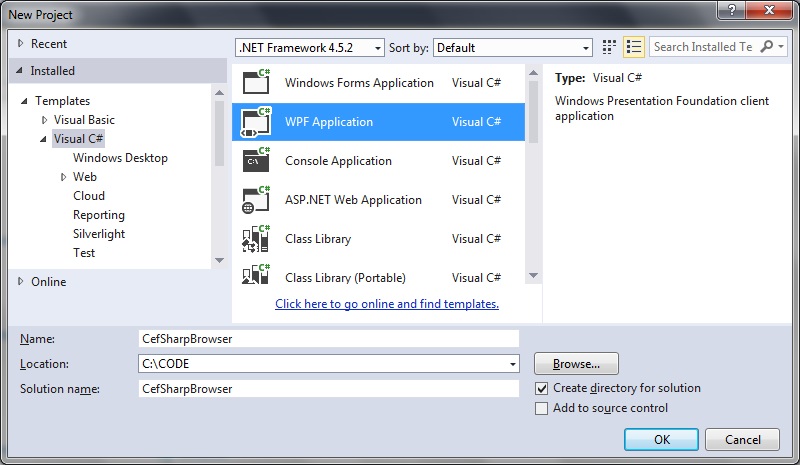

Step 1: Create a new WPF project

cefsharpbrowser

Step 2: Obtain the CefSharp packages using NuGet

Select Tool > NuGet Package manager > Package Manager Console.

Use the

PM> install-package CefSharp.Wpf

Step 3: add the CefSharp dll references

Right-click on References, select ‘Add reference’

When the dialog appears, select the Browse button. Navigate to the ‘packages’ folder that NuGet has installed to your Visual Studio project. For this project I’m choosing the x86 versions…

Add CefSharp.Wpf.dll:

cefsharpbrowser1

Add the CefSharp.dll, CefSharp.Core.dll, CefSharp.BrowserSubprocessCore.dll:

cefsharpbrowser2

If you get the error similar to the following:

Error	1	CefSharp.Common will work out of the box if you specify platform (x86 / x64). For AnyCPU Support see https://github.com/cefsharp/CefSharp/issues/1714	CefSharpBrowser

… make sure you have set the Configuration Manager is set to either x86 or x64 – NOT ‘Any CPU’ otherwise it will never work.

cefsharpbrowser3

Step 4: Update the MainWindow.xaml to embed the ChromiumWebBrowser control:

Namely, a reference to the CefSharp.Wpf namespace and the ChromiumBrowserControl itself.

MainWindow.xaml

<Window x:Class="CefSharpBrowser.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:wpf="clr-namespace:CefSharp.Wpf;assembly=CefSharp.Wpf"
        Title="MainWindow"
        Height="350" Width="525">

    <Grid>
        <wpf:ChromiumWebBrowser
            x:Name="Browser"
            Address="http://www.google.co.uk" />
    </Grid>
</Window>

The re-build your project. You may have to close and re-open your MainWindow.xaml file to get it to update and display correctly. When run the browser control appears embedded in the WPF application and navigates to the web address pointed to by the ChromiumWebBrowser ‘Address’ property, as shown:

cefsharpbrowser4

Known issues

The most recent version of CefSharp (version 53.0.0) does not seem to browse PDF documents so well. If this is an issue for you, uninstall this version (by using the NuGet package manager) and install an earlier version instead:

First un-install the newer packages:

PM> uninstall-package CefSharp.Wpf
PM> uninstall-package CefSharp.Common
PM> uninstall-package cef.redist.x64
PM> uninstall-package cef.redist.x64

Then remove the existing references: right click the References folder, and select to remove CefSharp.Wpf, CefSharp.Core etc.

And then install the older version:. Just the following command is sufficient to install everything:

PM> install-package CefSharp.Wpf -version 39.0.0

So that the list of packages now becomes:

<?xml version="1.0" encoding="utf-8"?>
<packages>
  <package id="cef.redist.x64" version="3.2171.2069" targetFramework="net452" />
  <package id="cef.redist.x86" version="3.2171.2069" targetFramework="net452" />
  <package id="CefSharp.Common" version="39.0.0" targetFramework="net452" />
  <package id="CefSharp.Wpf" version="39.0.0" targetFramework="net452" />
</packages>

As before, add the updates dll references to the project, but this time from the 39.0.0 folder:

cefsharpbrowser5

cefsharpbrowser6

Try wiring the ‘Address’ property to an example PDF location, such as

<Grid>
        <wpf:ChromiumWebBrowser
            x:Name="Browser"
            Address="http://www.pdf995.com/samples/pdf.pdf" />
    </Grid>

The application will then successfully browse PDF files as shown:

cefsharpbrowser7
